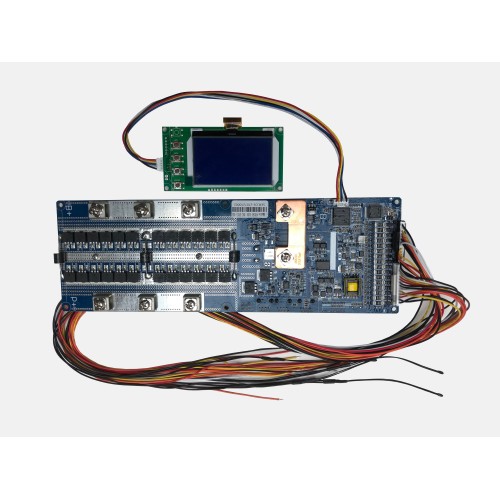

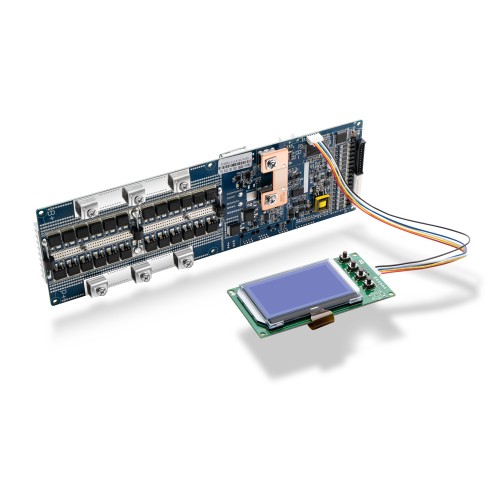

Seplos solar lithium battery module CANBUS/RS485 48v 8S-16S 50A/100A/150A/200A lithium battery protection board Cell monitoring system
1. We can provide seplos CANBUS/RS485 24V/48V 50A/100A/150A/200A Lifepo4/NCM BMS,for prismatic or Cylindrical lithium battery pack
2.We can provide two kinds of BMS boards with different communication modes, one is BMS using CANBUS communication protocol and the other is BMS using RS485 communication protocol, so that customers can have more flexible choices
3.Our BMS can support up to 16 units in parallel operation.
4.The main functions are: CANBUS communication、RS485 communication、Passive balance、Individual cell over voltage protectionOver (under)voltage protection、temperature protectover charge(discharge) protection, over current protection, Short circuit protection etc.
Attention: when we want to view the battery pack parameters through the battery parameter monitoring software, we need to use the Rj45 to USB Adapter to connect the battery pack to the computer. We recommend that you purchase an Rj45 to USB Adapter from us.Adapters purchased from the market may not work properly due to the definition of the hardware

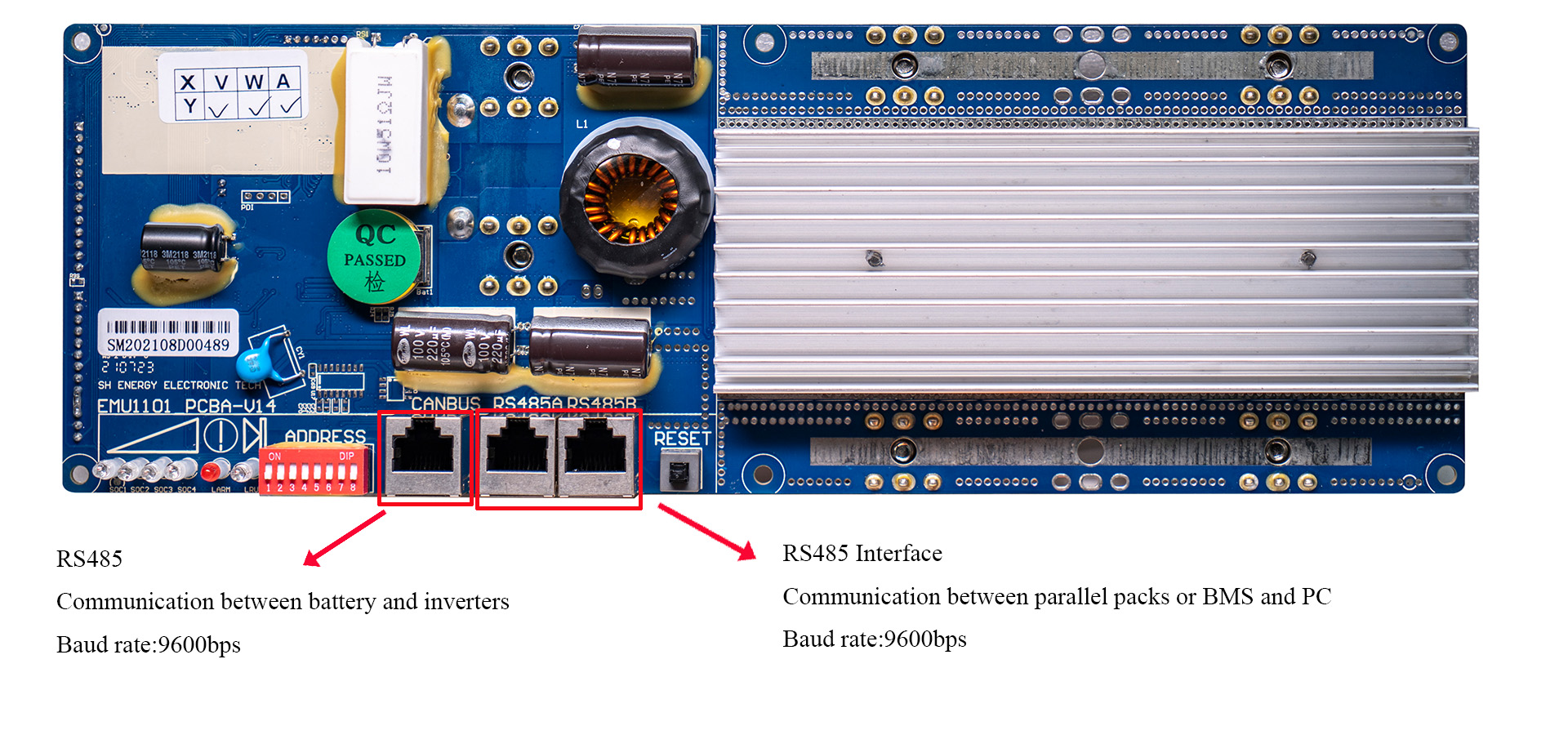

Communication methods
CANBUS mother board
Now our CANBUS communication board supports these brands of inverters,and our BMS has built-in CANBUS protocol of matching inverter brand, which can be automatically matched or manually switched:
*The default is the Pylontech CANBUS protocol
* Goodwe
* Growatt (The default is SPF(off-grid) protocol. If your inverter is SPH(on-grid) , please contact the sales person)
* Victron
* LUX POWER
* Sofar
* DEYE
* Sermatec
* RENAC
* TBB POWER
* SOLIS
* SMA
* FoxESS

* IMEON
If the inverter brand not in the listed, please ask your inverter supplier for the protocol define. And sent it to us, we'll help confirm that.
RS485 mother board
Now our RS485 communication board supports these brands of inverters,The BMS with RS485 communication has a built-in RS485 protocol, please confirm with the salesman before buying what you need is that one RS485 protocol.
*The default is the Pylontech RS485 protocol
* Voltronic
* Phocos
* Growatt
If the inverter brand not in the listed, please ask your inverter supplier for the protocol define. And sent it to us, we'll help confirm that.
Celule LiIon
Nr. Amperi Amperi

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Seplos Smart BMS CAN BUS RS485 48v 100A/150A/200A 8S-16S

  • Brand: Seplos
  • Product Code: Seplos-48V-100A-8S-16S_CAN-RS485
  • Availability: 4
  • 1,804 lei

  • Ex Tax: 1,655 lei

Available Options
